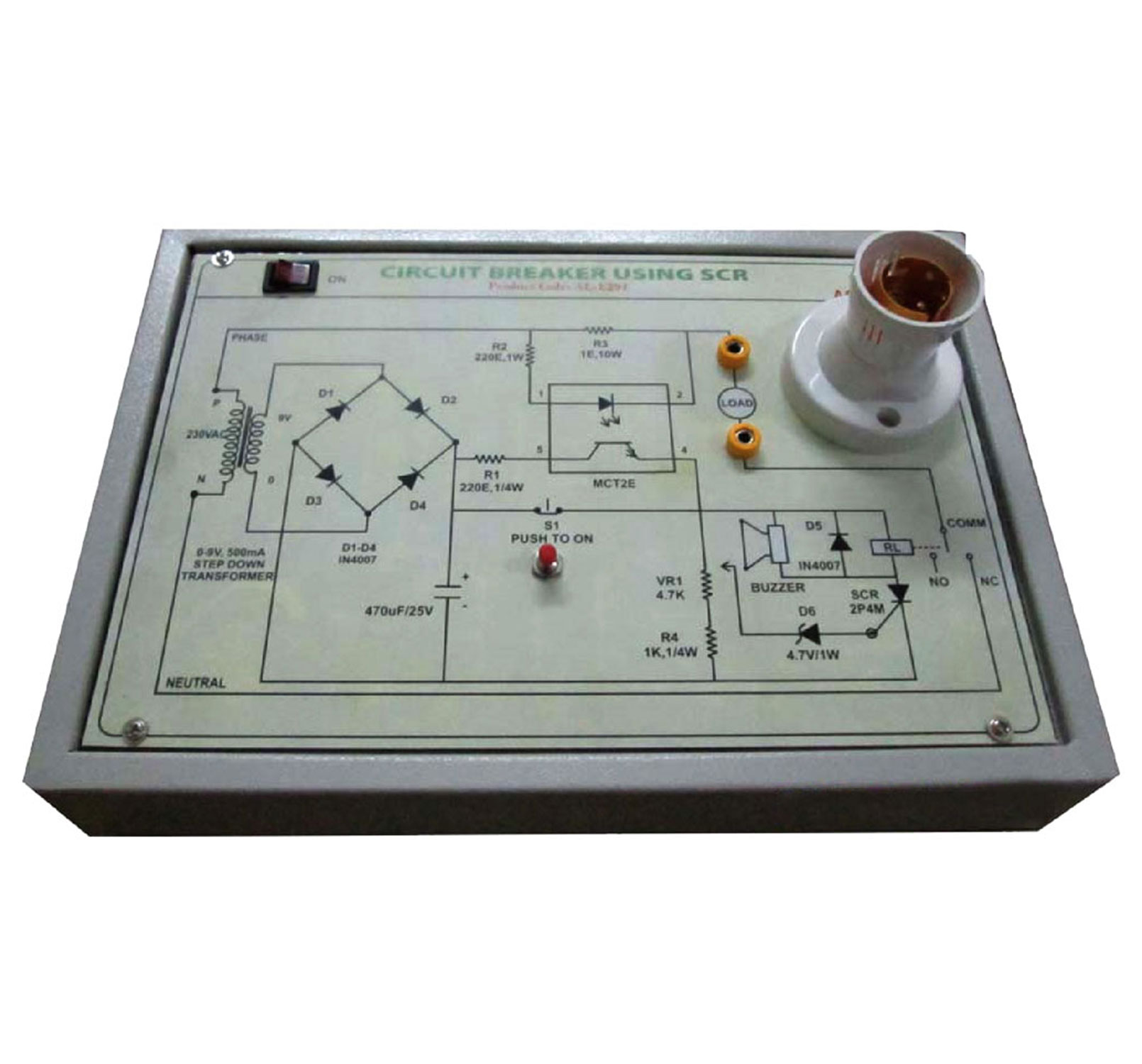

CIRCUIT BREAKER USING SCR
- Fuse for Short Circuit protection
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Instruction manual.
- Patch Cords 4mm.
- High Voltage Test Points are Provided With 2mm Sockets
- The trainer is housed in ABS Plastic Cabinet.
- Size of the trainer set 12″X8″
Description
Specifications
Power Supplies:
- Isolated AC Power Supply 0-9V, 250Ma
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- Diode 1N4007
- Resistive Load (Lamp)
- SCR TYN604
- Capacitors, IC’s and Resistors
Accessories
